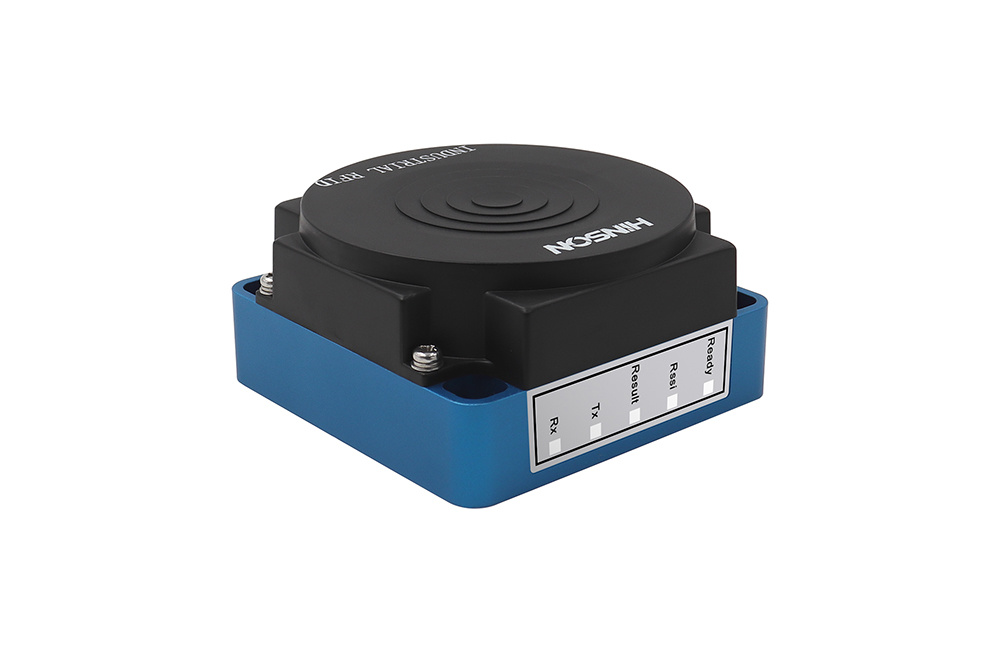

RH623
Retail Price
Market price
Product Code:RH623
- 特性1: 0~130mm (reading and writing distance)
- 特性2: ISO15693
- 特性3: ≤3m/s (Label moving speed)
- 特性4: 0~15 (Strength Test)
- 特性5: Modbus-TCP
- 特性6: 4Byte/7ms (read and write speed)
Weight
kg
Inventory
隐藏域元素占位
|
Performance parameters |
|
|
Read/write distance |
0-130mm (related to tag size and environment) |
|
Read/write time |
Reading 4Byte data: 7ms Writing 4Byte data: 14ms Reading 8Byte data: 9ms Writing 8Byte data: 21ms
|
|
Allowable tag moving speed |
≤3m/s |
|
Signal strength detection |
0-15 level RSSI card reading signal strength detection |
|
Interface |
|
|
Communication interface and protocol |
Modbus-TCP、Modbus-RTU(RS232) |
| Mechanical/Electrical Specifications | |
|
Operating voltage |
DC 12-36V |
|
Carrier frequency |
13.56MHZ |
|
Radio frequency standard |
ISO15693 |
|
Antenna |
Integrated antenna |
|
Cable length |
1.5 meters |
|
Environmental parameters |
|
|
Operating temperature |
﹣10°-﹢50° |
|
Operating humidity |
Below 80% (non-condensing) |
|
Operating medium environment |
No corrosion, no combustible gas or dust, no radioactive substances, no strong magnetic fields, cannot be used in a vacuum environment |
Adopts T0F technology, ultra-low power consumption < 1W, 1mm resolution; has an extremely high measurement frequency of 144K, < 10ms response time, fast response speed. When the reflectivity is ≥ 90%, the maximum measurement distance is 5m; high-precision ranging technology, the repeatability is ±10mm. IP65 protection level, excellent dustproof and waterproof performance, can be used indoors and outdoors; one-key teaching button adjusts the distance, debugging is simple and quick; infrared detection light source, strong anti-interference ability; the sensor wiring adopts a 270° rotatable connector, which is more suitable for various compact installation spaces.
Scanning angle 320°, scanning radius 30m, accuracy ±2cm, scanning frequency configurable at 10Hz/20Hz, angular resolution configurable at 0.025°/0.05°/0.1°/0.25°/0.5°, 4 NPN discrete outputs, supports TCP/UDP, LED screen display, ≤3W ultra-low power consumption.
Scanning angle 320°, scanning radius 30m, accuracy ±2cm, scanning frequency 20Hz, angular resolution 0.5°, 6 PNP switch quantity inputs, 4 PNP switch quantity outputs, supports Type-C port, LED screen display, ≤3W ultra-low power consumption.
Environmental perception and high-precision localization (such as mapping, scanning, obstacle avoidance, and protection) in industrial automation and mobile robot application scenarios
Measurement radius up to 30 meters, angular resolution as low as 0.025°, 320° scanning angle, high-speed sampling capability up to 432kHz, multi-echo function, supports object surface noise filtering level setting, and trailing filter setting
The DHR series distance sensors utilize a self-developed ranging algorithm, optimized optical scheme, 540kHz measurement frequency, maximum ranging distance of 10m, and millimeter-level accuracy. The measured object (reflective film) maintains consistent measurement accuracy even under high-speed displacement. With an aluminum alloy shell, IP65 protection rating, and a 270-degree rotatable cable exit, it is suitable for various working environments.
The DHR series distance sensors utilize a self-developed ranging algorithm, optimized optical scheme, 540kHz measurement frequency, maximum ranging distance of 50m, and millimeter-level accuracy. The measured object (reflective film) maintains consistent measurement accuracy even under high-speed displacement. With an aluminum alloy shell, IP65 protection rating, and a 270-degree rotatable cable exit, it is suitable for various working environments.
The DHR series distance sensors utilize a self-developed ranging algorithm, optimized optical scheme, 540kHz measurement frequency, maximum ranging distance of 10m, and millimeter-level accuracy. The measured object (reflective film) maintains consistent measurement accuracy even under high-speed displacement. With an aluminum alloy shell, IP65 protection rating, and a 270-degree rotatable cable exit, it is suitable for various working environments.
Up to 3KHz update rate (currently the fastest on the market) Supports mobile speed measurement up to 12 meters/second High reliability, absolute accuracy up to ±2mm Features IP65 water resistance, SSI, CANOpen, TCP/IP, Profinet and other interfaces, adaptable to more usage scenarios With an operable display, distance values and configuration parameters can be viewed intuitively and quickly User-friendly design, rugged metal aluminum casing with mounting bracket makes installation and equipment replacement easier
Update rate as high as 3KHz (currently the fastest on the market) Maximum support for mobile speed measurement of 12m/s High reliability, absolute accuracy up to ±2mm With IP65 waterproof rating, interfaces such as SSI, CANOpen, TCP/IP, and Profinet can adapt to more usage scenarios With an operable display screen, distance values and configuration parameters can be viewed intuitively and quickly Humanized design, the sturdy metal aluminum shell with a fixing bracket makes installation and replacement of equipment easier
Update rate as high as 3KHz (currently the fastest on the market) Maximum support for mobile speed measurement of 12m/s High reliability, absolute accuracy up to ±2mm With IP65 waterproof rating, interfaces such as SSI, CANOpen, TCP/IP, and Profinet can adapt to more usage scenarios With an operable display screen, distance values and configuration parameters can be viewed intuitively and quickly Humanized design, the sturdy metal aluminum shell with a fixing bracket makes installation and replacement of equipment easier
Update rate up to 3KHz (fastest on the market) Supports moving speed measurement up to 12 meters/second High reliability, absolute accuracy up to ±2mm Features IP65 waterproof rating, SSI, CANOpen, TCP/IP, Profinet and other interfaces, adaptable to more application scenarios With an intuitive display, distance values and configuration parameters can be viewed quickly and intuitively User-friendly design, robust metal aluminum casing with fixed bracket makes installation and equipment replacement easier
Update rate as high as 3KHz (currently the fastest on the market) Maximum support for mobile speed measurement of 12m/s High reliability, absolute accuracy up to ±2mm With IP65 waterproof rating, interfaces such as SSI, CANOpen, TCP/IP, and Profinet can adapt to more usage scenarios With an operable display screen, distance values and configuration parameters can be viewed intuitively and quickly Humanized design, the sturdy metal aluminum shell with a fixing bracket makes installation and replacement of equipment easier
Update rate as high as 3KHz (currently the fastest on the market) Maximum support for mobile speed measurement of 12m/s High reliability, absolute accuracy up to ±2mm With IP65 waterproof rating, interfaces such as SSI, CANOpen, TCP/IP, and Profinet can adapt to more usage scenarios With an operable display screen, distance values and configuration parameters can be viewed intuitively and quickly Humanized design, the sturdy metal aluminum shell with a fixing bracket makes installation and replacement of equipment easier
Up to 3KHz update rate (currently the fastest on the market) Supports mobile speed measurement up to 12 meters/second High reliability, absolute accuracy up to ±2mm Features IP65 waterproof rating, SSI, CANOpen, TCP/IP, Profinet and other interfaces, adaptable to more usage scenarios With an operable display screen, distance values and configuration parameters can be viewed intuitively and quickly User-friendly design, rugged metal aluminum casing with mounting bracket makes installation and replacement of equipment easier
Update rate up to 3KHz (currently the fastest on the market)Supports mobile speed measurement up to 12 meters/secondHigh reliability, absolute accuracy up to ±2mmWith IP65 waterproof rating, SSI, CANOpen, TCP/IP, Profinet and other interfaces, it can adapt to more usage scenariosWith an operable display, distance values and configuration parameters can be viewed intuitively and quicklyUser-friendly design, a sturdy metal aluminum casing with a mounting bracket makes installation and replacement of equipment more convenient
The design, production, manufacturing, and testing of the product comply with relevant standards;
In order to better serve customer needs, our company has established a complete (pre-sales, in-sales, after-sales) service management system, based on the service spirit of “pursuing excellence, providing high-quality products, and customer satisfaction as the goal”, we provide the following services:
Pre-sales service:
1. Support: Thoroughly understand customer requirements and provide customers with perfect solutions;
2. Consultation: Provide free technical consultation to customers without disclosing our company's technical secrets.
In-sales service:
1. Cooperation: Pre-use technical parameter explanation and training (remote assistance);
2. Guidance: Targeted technical guidance from professional personnel for customers during project implementation;
3. Updates: Regularly provide updates and upgrades of product software and corresponding parameters;
4. Maintenance: Provide annual inspection or maintenance plans for products.
After-sales service:
1. The product warranty period is 2 years;
2. Any quality problems that occur within the product's operating environment (refer to the product instructions) will be replaced or repaired free of charge during the warranty period;
3. Lifetime paid maintenance services are provided;
