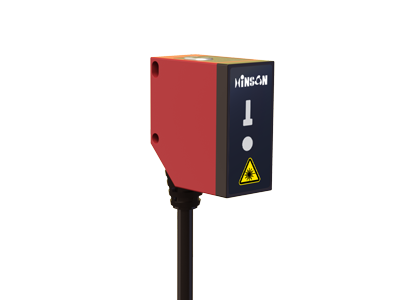

SLR10-21000
Retail Price
Market price
Product Code:SLR10-21000
- 特性1: 0~10 m (effective range)
- 特性2: ±20 mm (absolute accuracy)
- 特性3: 144 kHz (measurement frequency)
- 特性4: 660 nm (non‑human‑eye‑safe laser)
- 特性5: CAN OPEN, 2*NPN (PNP) (Out)
- 特性6: 1.0 m (straight-out cable)
Weight
kg
Inventory
隐藏域元素占位
| Performance Parameters |
|
| Effective range |
0.05–10 meters (≥90% reflectance) 0.05–6 m (≥10% reflectance) |
| Resolution |
1mm |
| Measurement frequency |
144KHz |
| Absolute accuracy | ±20mm |
| Repeatability | ±10mm |
| Interface | |
| CAN | CAN OPEN |
| Digital signal | 2*NPN (PNP) outputs |
| Mechanical/Electrical Parameters | |
| Power supply |
DC 10–30V |
| Power consumption |
< 1W |
| Light source wavelength | 660 nm (non‑human‑eye‑safe laser) |
| Indicator light | 2 LEDs (green—PWR, red—serial port output information) |
| Button | Button A (used to configure IO-01), Button B (used to configure IO-00) |
| Housing material | ABS |
| Protection rating | IP65 |
| * Cable | 1.0 m (straight-out cable) |
| Environmental parameters | |
| Work environment |
-1 0°C to 50°C (for indoor use) <80% RH (no condensation, no frost) |
Note: *Designated as a multi‑option or non‑standard customization area; please refer to the product model definition for specific order specifications.
Utilizing Time-of-Flight (T0F) technology, it features ultra-low power consumption—less than 1 W—and a 1 mm resolution. With an exceptionally high measurement frequency of 144 kHz and a response time of under 10 ms, it delivers rapid responsiveness. When the reflectance is ≥ 90%, the maximum measurement range reaches 5 m; advanced high‑precision ranging technology ensures a repeatability of ±10 mm. It boasts an IP65 protection rating, offering excellent dust‑proof and water‑resistant performance for both indoor and outdoor use. A one‑button teach function allows easy distance adjustment, making setup quick and straightforward. Equipped with an infrared light source, it exhibits strong anti‑interference capabilities. The sensor’s output cable incorporates a 270° rotatable connector, enabling flexible installation in tight spaces.
Scanning angle: 320°; scanning range: 30 m; accuracy: ±2 cm; scan frequency: configurable at 10 Hz or 20 Hz; angular resolution: configurable at 0.025°, 0.05°, 0.1°, 0.25°, or 0.5°; four NPN digital outputs; supports TCP/UDP; LED display; ultra-low power consumption: ≤3 W.
Scanning angle: 320°; scanning range: 30 m; accuracy: ±2 cm; scan frequency: 20 Hz; angular resolution: 0.5°; 6 PNP digital inputs; 4 PNP digital outputs; supports Type‑C port; LED display; ultra-low power consumption ≤3 W;
Environmental perception and high-precision positioning—such as mapping, scanning, obstacle avoidance, and safety protection—in industrial automation and mobile robotics applications.
A maximum measurement range of 30 meters, an angular resolution as fine as 0.025°, a 320° scanning field of view, and high‑speed sampling at up to 432 kHz; it also features multi‑echo functionality and supports adjustable settings for surface‑noise filtering and trailing‑echo suppression.
The DHR series distance‑measuring sensors feature a proprietary ranging algorithm, an optimized optical design, a 540 kHz measurement frequency, a maximum range of 10 m, and millimeter‑level accuracy. They maintain consistent measurement precision even when the target object (a reflective film) is moving at high speeds. With an aluminum alloy housing, IP65 protection rating, and a 270° rotatable cable outlet, they are suitable for a wide range of operating environments.
The product’s design, production, manufacturing, and testing all comply with the relevant standards.
To better serve our customers’ needs, our company has established a comprehensive service management system and framework covering pre-sales, in-sales, and after-sales support, guided by the principle of… With a service philosophy of “pursuing excellence, delivering high-quality products, and prioritizing customer satisfaction,” we offer the following services:
Pre-sales Service:
1. Support: Gain a deep understanding of customer requirements to deliver tailored, optimal solutions.
2. Consultation: We provide customers with free technical consultation, provided that our company’s proprietary technical information remains confidential.
In-sales service:
1. Collaboration: Prior to use, training on the product’s technical specifications will be provided (via remote assistance).
2. Guidance: Throughout the project implementation process, we provide clients with targeted technical guidance from qualified professionals.
3. Updates: Regularly provide software updates and corresponding parameter upgrades for the product.
4. Maintenance: Provide annual inspection or maintenance plans for the product.
After-sales service:
1. The product is covered by a one-year warranty.
2. Within the product’s intended operating environment (as specified in the product user manual), any quality issues will be addressed with free replacement or repair during the warranty period.
3. Lifetime paid maintenance services;
